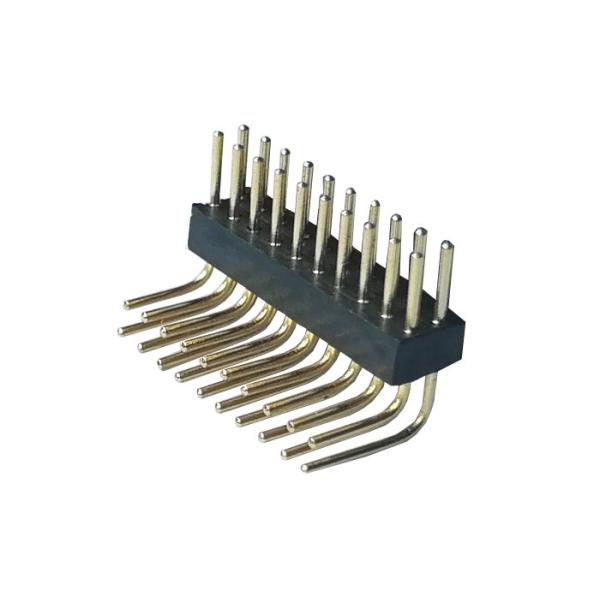

1.27mm 20 Pin Right Angle Round Female Pin Header Connector Gold Plated
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Hight | 1.9mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 20m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Vertical mount smt |
| Termination | Customization |
| Contact Shape | Round Pin |
| Pin Available | 2 Pins to 80 Pins |
What is the Pin Header Connector?
1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.
2. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
3. Regarding pin header electrical and mechanical properties, the same pitch has the same function, which we have shown clearly in our datasheet.
4. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability
Product Application:
Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
FAQ
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: What is your terms of payment?
A: Small Order amount, 100% better by PayPal or T/T in advance. Large amount like more than 5000USD, 30% T/T in advance, balance before shipment.
Q: Can you help me design a plug, receptacle, connector or harness?
A: Yes. We have decades of experience in providing customized services. Contact our R & D team for further assistance.
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
6. Number of stitches: 02 to 80; 02 to 100;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing.
